PVC Fence Wire

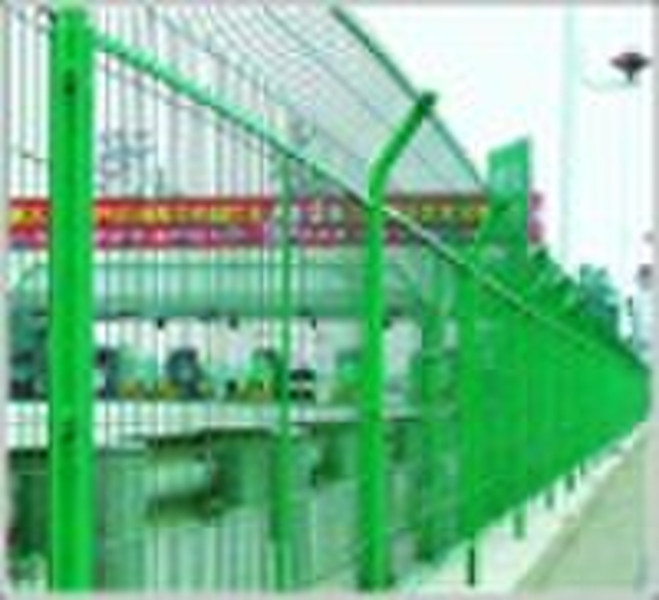

PVC Fence Wire A) our fence system consists of panels, posts, steel brackets, gates and other accessories, B)all galvanized and powder coated and available in more than eight different colors. Features & Benefits · 1>Easy to install · 2>Long lasting · 3>"V" braces for extra strength · 4>Blends with the landscape · 5>Price competitive 1) Fence Panels A)fence wire panels are galvanized with the best technology to make them strong corrosion resistant. B)The zinc and powder coatings provide the highest protection against corrosion and weather conditions, making fence a long lasting fencing system. Wires are uniformly and carefully welded on every union. C) The V-branch on each panel adds extra strength to it. Panels pass through a phosphate and a powder coating process to assure their corrosion resistance. 1>Heights: 2', 4', 5', 6'*, 8'* 2>Length: 8' 3>Opening (wxh)(in): 2"x6" 4>Braces: 2 (2'H & 4'H), 3 (5'H), 4 (6'H), 5 (8'H) 5>Gauge: 6 6>Wire breaking load: 80,000-100,000 PSI 7>Weld-shear strength: 1,051 lbs 8>Galvanized: 0.50 oz/square foot 9>Polyester coating thickness: 100 microns (4 mils approx) 11>Colors as your requirements 12>Stocked in green and black colors 2) Fence Posts A)fence posts are highly corrosion resistant thanks to their thick zinc coating at inner and outer post areas, phosphate treatment and powder coating. B) Post height is higher as part of it goes under ground or in concrete wall. 1>Post Height: 3' (2' panels), 6'* (4' panels), 7' (5' panels), 8'* (6' panels), 11'* (8' panels) 2>Gauge: 16 3>Dimensions: 2 1/4" x 2 1/4" 4>Weld-shear strength: 1,051 lbs 5>Galvanized: 0.50 oz/square foot 6>Polyester coating thickness: 100 microns (4 mils approx) 7>Colors as your requirements 8>Stocked in green and black colors 3) Gates A) fence presents its gate product line to fully complement the fencing system master plan. B)Frames and wires are uniformly welded and polished. Available as swing or sliding gates in single or double, gates are made with the highest quality materials and welding processes. Welded before coating for higher protection against weather with the same corrosion resistance as fence panels. C)Our gates include high quality and durable components and a variety of lock options to suit different applications. 4) Steel Brackets and other Accessories A)The fence steel brackets are made of galvanized steel and powder coated making them resistant and long lasting. B) Brackets attaching system to panel and post is easy to install and time saving. Bracket is locked with 1 1/4" x 1 1/4" galvanized screw and bolt, using a regular 7/16" wrench. C) Easy to install, strong and secure, adaptable to different fence angles and salt spray and UV tested. 1>Brackets per Post: 2 (2' panel), 2 (4' panel), 3 (5' panel), 4 (6' panel), 5 (8' panel) 5)Additional accessories include steel base and upper 45º angle for extra security. Three barbed wire lines or extra panels can be placed on the upper arm posts. Popular model WIRE FENCE Model HL-WMS-225 Post Spec(mm) 70*100*1.2 One-time forming seamless post Distance between posts (mm) 2560 Total height (mm) 1530,1730,1930,2130 Panel Width(mm) 2500 Steel Wire Diameter(mm) Φ5 Mesh Dimension(mm) 200*50( Reinforced slot 100*50) Antisepsis technics Goldnet Standard Triple anti-corrosion process model 2 WIRE FENCE Model HL-WMS-397Post Spec(mm) 60*60 *2 Square steel postDistance between posts (mm) 2525Total height (mm) 1130,1630,2130Panel Width(mm) 2500Steel Wire Diameter(mm) Φ4.5Mesh Dimension(mm) 200*50(Reinforced slot 50*50)Parts for Choice Flange PillerAntisepsis technics Goldnet Standard Triple anti-corrosion processmodel 3 WIRE FENCE Model HL-WMS-572Post Spec(mm) 60*90*1.2 One-time forming seamless postDistance between posts (mm) 2540Total height (mm) 1130,1530,1730,1930Panel Width(mm) 2500Steel Wire Diameter(mm) Φ4.5Mesh Dimension(mm) 200*50( Reinforced slot 100*50)Parts for Choice Flange PillerAntisepsis technics Goldnet Standard Triple anti-corrosion processWe never sacrifice quality at lower pri
